Home > Products > Truck scale > Portable truck scale

Portable truck scale Get Inquiry
Send Email to:truckscale@bogushanghai.com

Technical Parameters

Model	Platform size (m)	Max weighing capacity (t)	Division value (kg)	Installation height (mm)
PTS-20	7×3	20	10	420
PTS-30	12×3	30	10	420
PTS-50	12×3	50	20	420
PTS-60	14×3	60	20	420
PTS-80	16×3	80	20	420
PTS-100	16×3	100	20	420
PTS-120	16×3	120	20	420
PTS-150	18×3.4	150	20	420

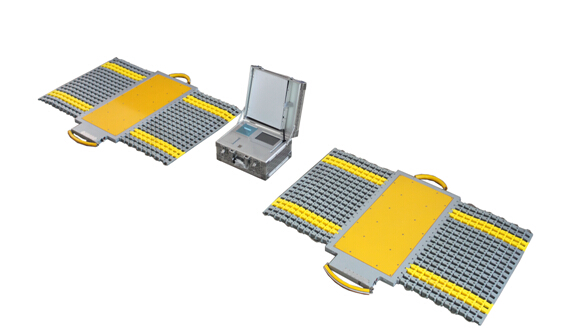

Portable truck scale

Portable truck scale, composed of two high-strength alloy steel ultra-thin platform, four rubber slope and a portable weighbridge weighing indicator components. The use of laser welding sealing process structure, solid compact, anti-partial load, overload capacity of ultra-thin alloy steel sensor. Rugged rubber spill, connected with a portable platform to maintain the vehicle in the unbalanced weighing state to maintain the stability of the weighing to ensure that the portable weighbridge weighing platform will not bounce. Unique sensor stress mode, high resolution, suitable for different types of vehicles static, dynamic weighing. Portable platform scales display instrument, AC and DC, display, print integration, stable and reliable.

1. Dual display and Chinese menu makes the instrument including function selection, parameter setting is very simple to use

2. The use of digital sensors, greatly improving the system's data processing capabilities for the dynamic use of the system to provide technical support

3. Weighing platform small size, light weight, thin thickness, easy to use products

4. With the date and time display, the number of ticket number input, weighing platform for bridge voltage monitoring

5. The use of floating zero technology and zero tracking technology, the complete elimination of zero drift

6. Up to 10 cars can be measured up to one time

7. No need to increase the bridge can be multi-axis vehicles to count

8. High-speed micro-printer, print parameters include: time, date, car number, ticket number, axle weight, axle weight, gross weight, overrun and unit name and other data.

9. With standard RS-232 interface, easy to connect with the computer

10. AC and DC switching power supply stable and reliable, built-in battery, a charge can be detected hundreds of times

11. Portable truck scale is particularly suitable for the scope: logistics freight yard, warehousing, docks, mines, farm products, waste recycling, timber and earth sand stone weighing, traffic police, road, overrun law enforcement

12. Maximum shaft weight 30t, the minimum detection axle weight 500kg High dynamic accuracy, automatic speed compensation

13. Lightning: rainy weather to prevent lightning, suitable for bad weather field use

14. Waterproof: weighing Taiwan multi-layer seal protection: sensor seal laser welding, simple structure easy maintenance, moisture and waterproof effect, to ensure that the rain can be normal detection.

15. anti-remote control: equipment using Germany's most advanced shielding technology, effectively prevent interference
